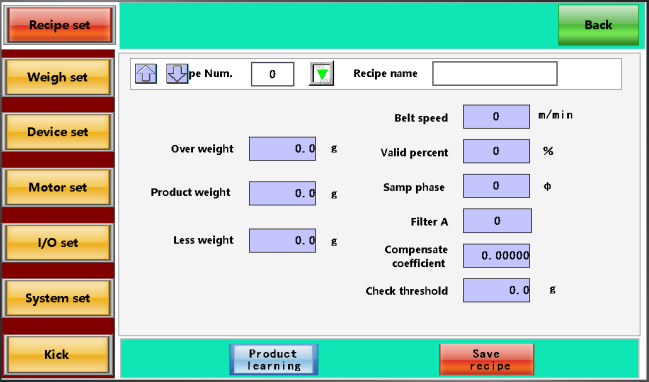

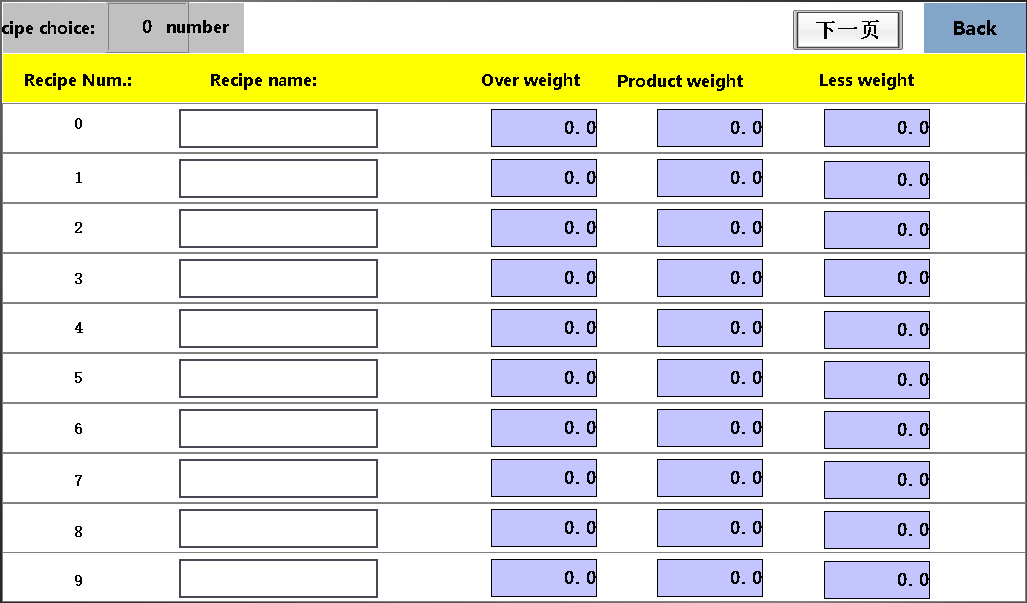

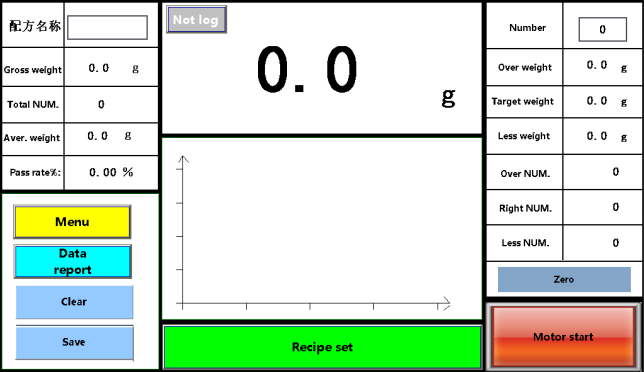

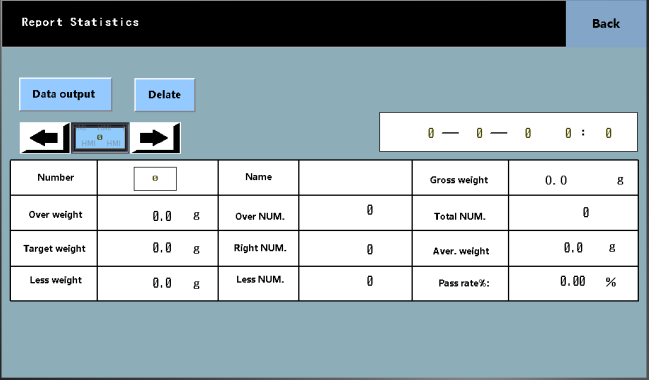

Main interface
Address: Lane 4369, Yingang East Road, Qingpu District,Shanghai
E-mail : mark@weightwell.net Tel : +86 136 3635 4565

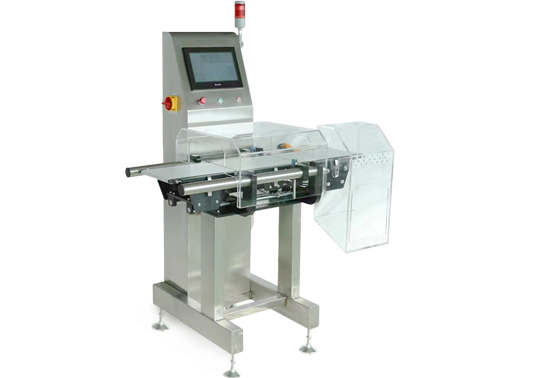

| Model | WT200B |
| Belt Width ( mm ) | 200mm |
| Maximum Range (g) | 500g |
| Max Accuracy | ±0.2g |
| Minimum Scale | 0.1g |
| Max Process Speed | 150 pcs/min |
| Weighing product size | ≤200mm(L)*200mm(w) |

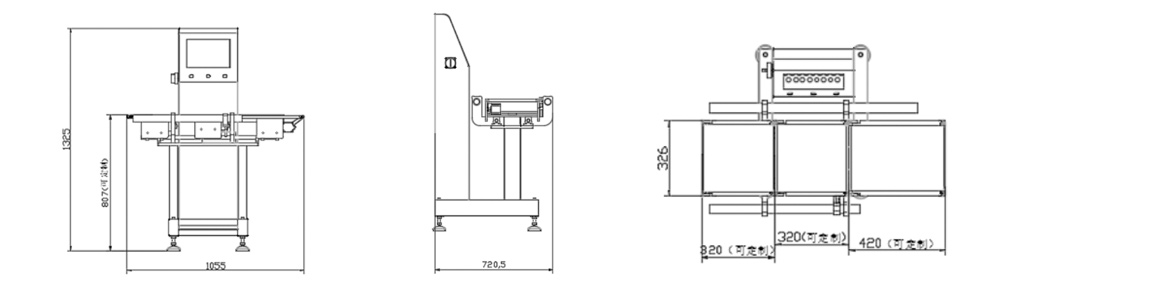

| Checkweigher size(customizable) | 1055mm(L)*720.5mm(W)*1325mm (H) |
| Reject Mechanism | Airblower/Pusher/Arm |
| External air source | 0.6-1Mpa |
| Power Supply | AC220V±10%, 50HZ/60HZ |
| Air pressure interface | Φ8mm |
| Working environment | Temperature: 0°C -40°C，Humidness; 30%~95% |
| Meterial | 304 stainless steel |
