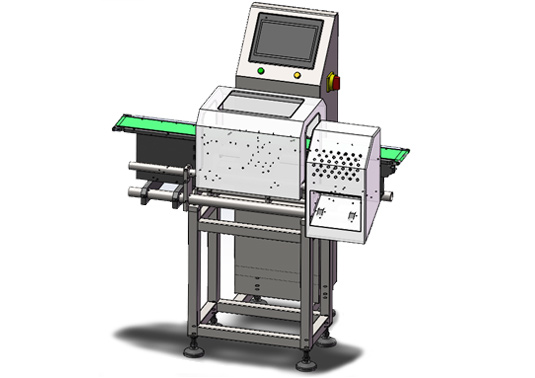

WT100 – High Speed CheckWeigher

Request offer

Specifications

Model	WT100
Belt Width ( mm )	100mm
Maximum Range (g)	200g
Max Accuracy	±0.1g
Minimum Scale	0.1g
Max Process Speed	300 pcs/min
Weighing product size	≤150mm(L)*100mm(w)

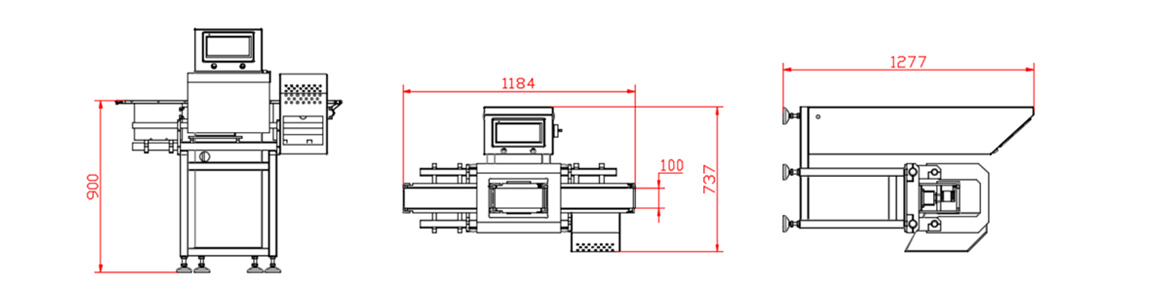

Checkweigher size(customizable)	1184mm(L)737mm(W)1277mm (H)
Reject Mechanism	Airblower/Pusher/Arm
External air source	0.6-1Mpa
Power Supply	AC220V±10%, 50HZ/60HZ
Air pressure interface	Φ8mm
Working environment	Temperature: 0°C -40°C，Humidness; 30%~95%
Meterial	304 stainless steel

Functional characteristics

This product can be integrated with various high-speed packaging production lines and conveying systems, mainly used for high-speed online inspection equipment to check whether the product is qualified, such as: missing parts in the package or missing instructions.
